• Ideal for monitoring indoor areas
• FullHD video resolution with max. 15fps
• Supports wi up to ~10m in open areas
• Live monitoring via free iOS & Android app (worldwide)
• Motion detection & motion tracking
• Swivels horizontally and vertically (355° & 130°)
• Alarm function (push message) on your Smartphone
• Built-in microphone & speaker for 2-way communication
• H.264/H.265 video compression (for space-saving recordings of
high quality)
• Automatic overlay loop recording
• Day / Night mode: built-in IR-CUT lter automatic switching
• 6 infrared LEDs for up to 8m night vision (850nm)

Technical Specications:
• Colour sensor: 1/ 2.9" CMOS (2 MP)
• Minimum illumination: 0.1 Lux @ (F2.0, AGC ON), 0 Lux with 6x IR LED
• Lens / Shutter: f=3.6mm / 1/50(1/60)s _{1/100000s
• Supports MicroSD(HC/XC) cards up to 128GB (FAT32/ exFAT) class10
• File size (night; B/W): 4MB/min (32GB = 5.5 days continuous recording);
• File size (day; colour): 6.4MB/min (32GB = 3.5 days continuous recording)
• Network Interface: 2.4GHz WiFi; Radiated output power max. 100mW
• Power supply: DC 5V±10% 1.5A; Power consumption 5W maximum
• Operating conditions: -10°C}+50°C, humidity 90% or less
(non-condensing)
• Weight / Dimension: 192g / (H) 10.5 x Ø 8.0
APP "Security Premium": iOS 9.0 or above; Android 7.0 or above / EN, DE,
FR, ES, IT, NL, SE, DK, NO, FI, CZ, PO (06-2020)
Package Contents:

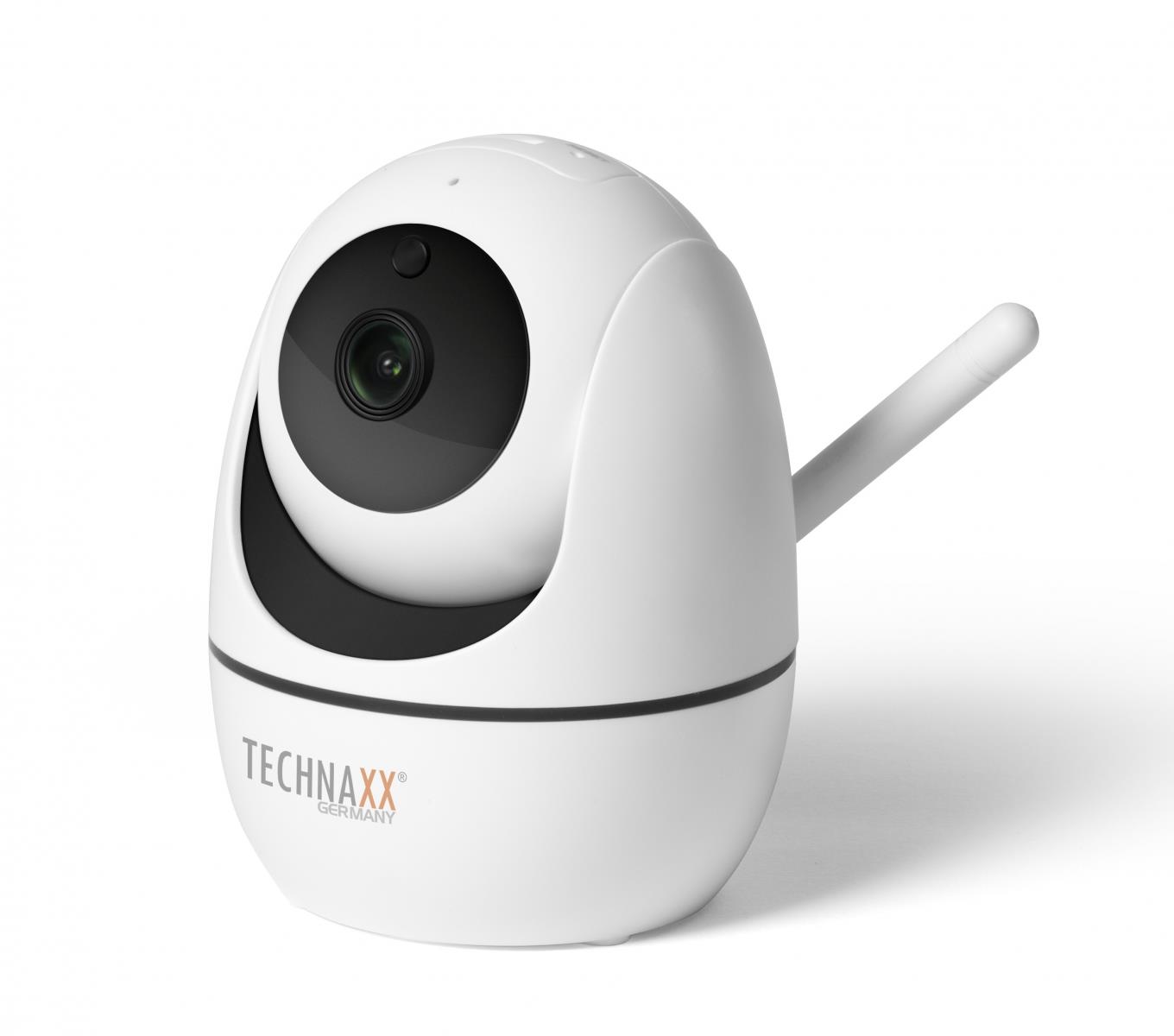

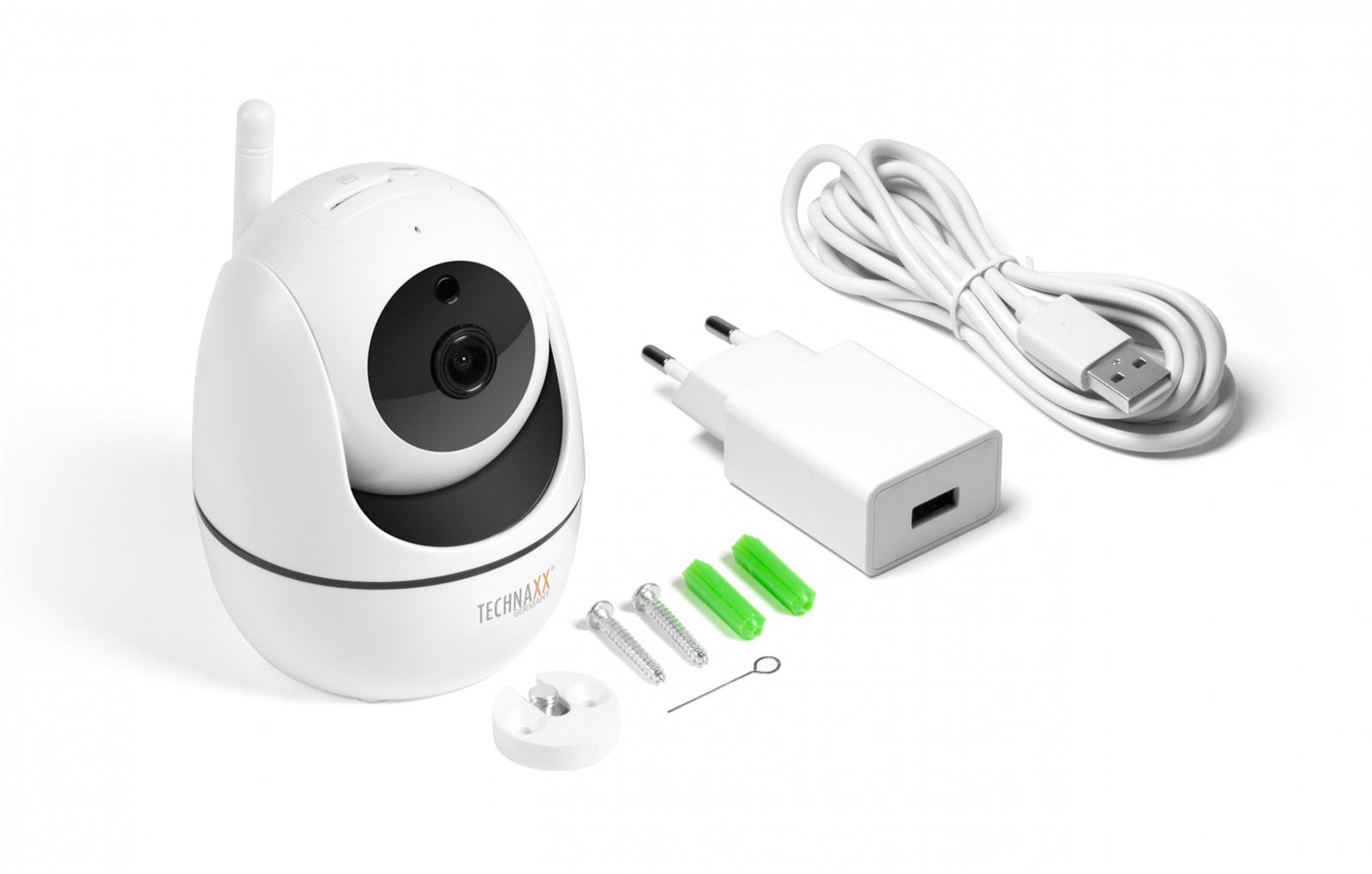

FullHD WiFi IP PT Indoor Camera TX-146, 1x USB power adapter 5V/1.5A,
1x USB-to-Micro-USB power cable (2m), 2x Screws & Dowels, 1x reset
pin, 1x mounting bracket with screw, User Manual (short)
