eHSA2-500 is a multichannel amplifier with 2 high impedance powered outputs. New light-weight format in 2RU, versatile and affordable.
Features:
- 2 mono balanced inputs (Euroblock terminals) with stack outputs
- 2 x 500 WRMS output (100V line level)
- Euroblock output connectors
- Selectable HPF (Cut-off freq. = 75Hz)
- Thermal protection
- Overload protection
- Anti-clip system

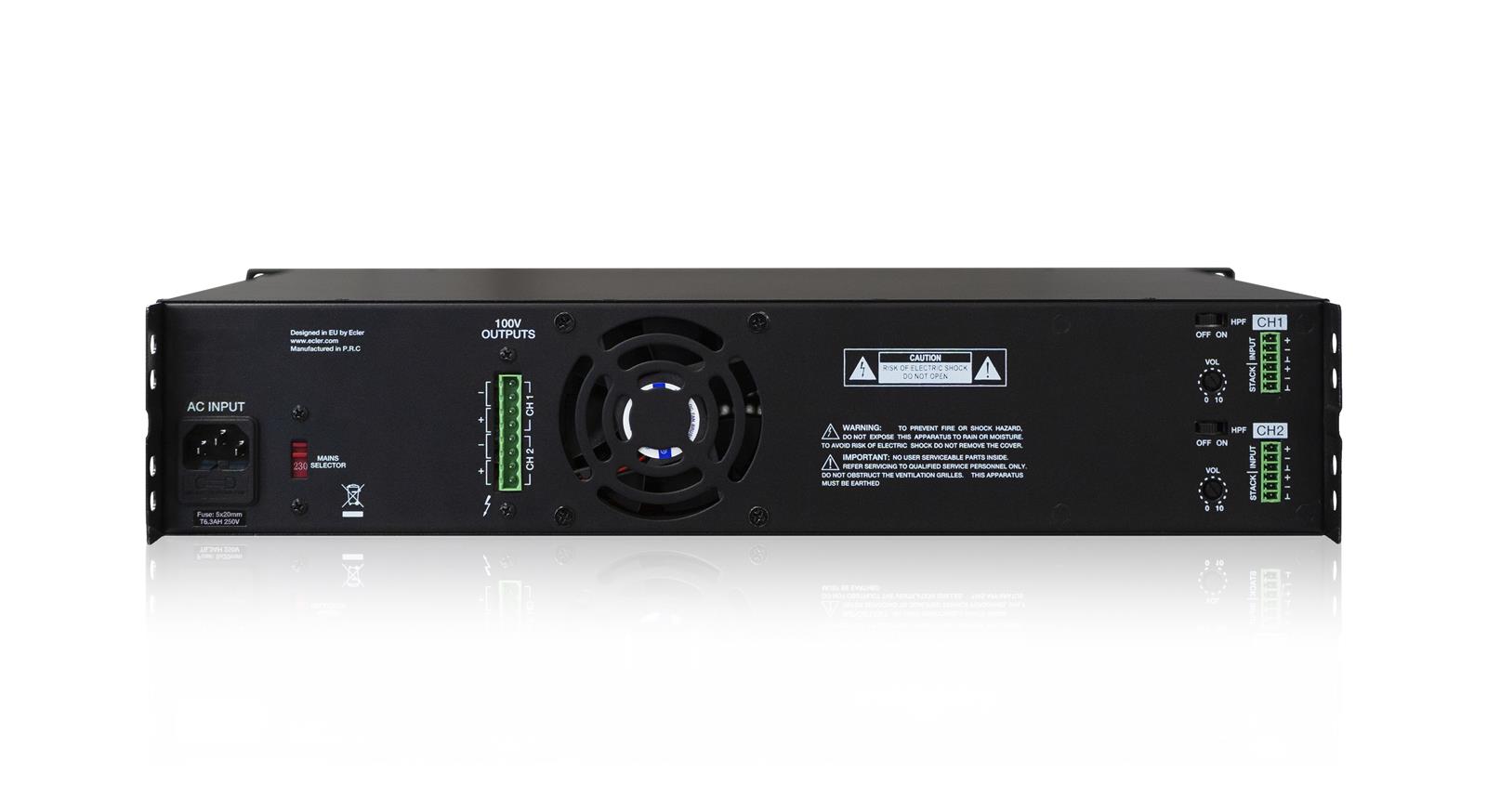

- Volume control trimmers on rear panel
Applications:
Retail Education Corporate Hospitality
General
- Amplifier type
- Power amplifier
Audio specification
- Amp channels
- 2
- Power/ch (70/100V)
- 500 W @ 100V RMS
- Distortion THD
- 0,05 % @ 1kHz Full Power
- Frekvensområde Min
- 40 Hz
- Frekvensområde Maks
- 20 000 Hz
- Signal-to-noise ratio
- 80 dB 20Hz - 20kHz
- Innebygd DSP
- Nei
Connections
- Lydinnganger
- Euroblock line mono balanced
- Lydutganger
- Euroblock spk. cable
- Bluetooth
- Nei
- Ethernet
- Nei
- WiFi
- Nei
- Styring
- Front buttons
Energy
- Power Supply
- Built in power supply 115V/230V @ 50-60Hz. Voltage changed by Switch, externally
- Type av kjøling
- Air active (fan)
- Auto Standby function
- Nei
Størrelse & Vekt
- Width
- 482,6 mm
- Dypde
- 365 mm
- Høyde
- 88 mm
- Net weight
- 6,3 kg
Additional information
- Installation
- 19" Rack, 2U
- Warranty
- 5 år
Pakkeinformasjon
- Pakkestørrelse
- 540 x 490 x 170 mm
- Pakkevekt
- 8,50 kg
