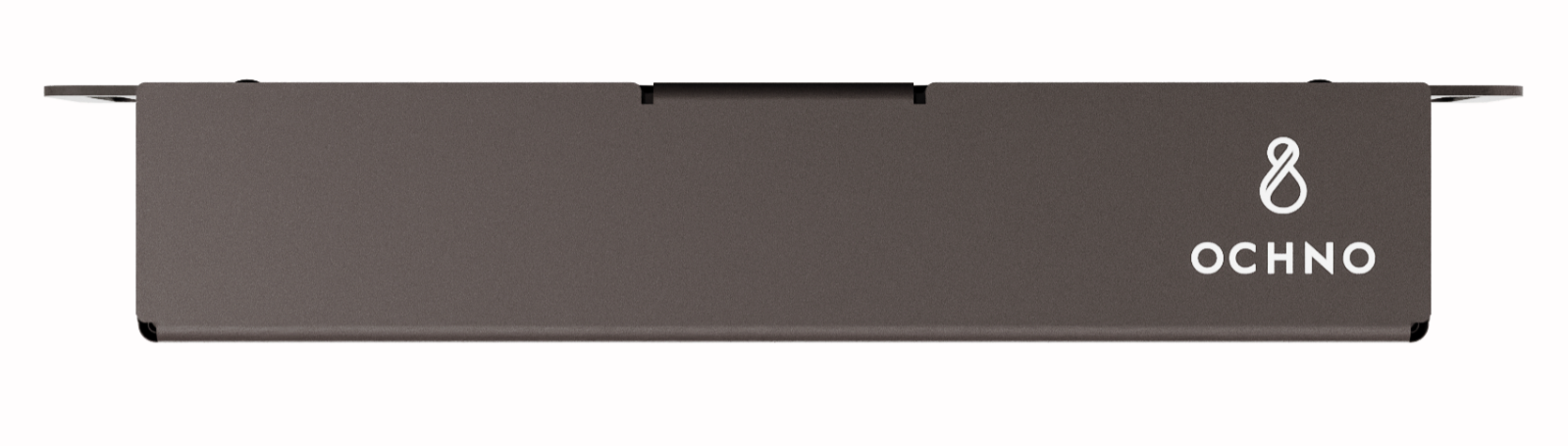

Wall-side receiver.
Ochno Power Conference 4 Node is an extension product in the Ochno Room Kit. With USB-C input and USB-C output, each providing up to 100W of charging, it can be used to extend connections both downstream towards the display and devices, and upstream towards the laptop.
Functions
Management
O-PC-4-NODE is fully managable via connected O-PC-4, either locally using Ochno Management Console or Ochno Operated.
USB-C Internet
The network connected to the USB-C Internet port is shared via USB to the activly selected USB-C port. This allow the user to get network access without the need for using WIFI.
USB Pass-through

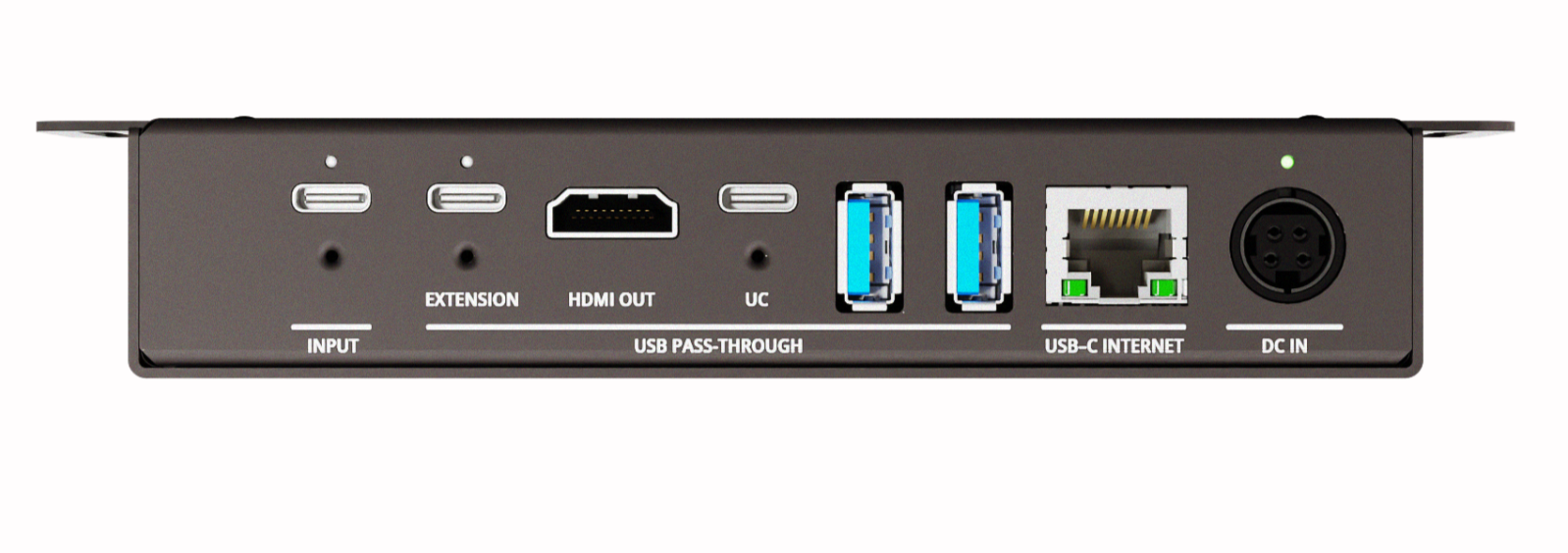

The 2 USB-A ports and 2 USB-C ports are normally used to connected USB device to. These devices will be made available to either the USB-C Input port or the Dual Role USB-C port in the case of Windows-based UC-systems.
Extension
The extension port can send both video and USB-communication to a downstream USB-C device which could be another O-PC-4-NODE, an O-PC-4, a device that supports USB-C upstream or a standard USB-C to HDMI-adapter.
Video out
O-PC-4 has an internal DP MST hub which allows for dual video output and a Windows laptop can select “Extend Desktop” to show different contant on each display. For installations with two HDMI displays, a USB-C to HDMI-adapter can be inserted into the Extension port to get a secondary HDMI out. Apple MacBooks will replicate the same image on both displays.
Charging and USB Power
O-PC-4-NODE is shipped with a 60W power supply which provides 5V/3A output on all USB-C ports and 5V/1A output on USB-A ports. Alternativly, a 200W power supply can be used and then USB-C Input and USB-C Extension ports can provide up to 100W power output.
General
- Application
- Conferencing Hub
Video specification
- Resolution max out
- 3840x2160
- Refresh rate
- 60 Hz
Connections
- Video inputs
- 1
- Video outputs
- 2
- Video in
- USB-C USB 3.2 Gen 2. Speed up to 10 Gbps. Up to 20V / 5A / 100W power supply. DP alt-mode 1.4 video input.
- Video out
- HDMI HDMI 2.1 video output. Max resolution 8k 60Hz. Up to 32 Gbps video output.
- Video out
- USB-C x2 (USB-C Input Port: DP alt-mode 1.4 video output, 2 or 4 DP lanes. Max resolution 2 x 4k 60hz at 4 lanes. Up to 32 Gbps video output. USB 3.2 Gen 2, speed up to 10 Gbps), (USB-C Dual Role Port: 1 x USB 3.2 Gen 2 Port. Speed up to 10 Gbps. Can connect both usb devices and usb hosts)
Functions
- Scaler
- Nei
- USB passthrough
- Ja The 2 USB-A ports and 2 USB-C ports are normally used to connected USB device to. These devices will be made available to either the USB-C Input port or the Dual Role USB-C port in the case of Windows-based UC-systems.
- USB standard
- 3.2 Gen 2
- USB power delivery
- 100W, 5V, 0,9A (4,5W)
Energy
- Power Supply
- 60W 12V / 5A Optional: 200W 20V / 10A power supply input.
Størrelse & Vekt
- Width
- 150 mm
- Dypde
- 65 mm
- Høyde
- 33 mm
- Net weight
- 0,38 kg
Additional information
- Installation
- Table, Wall
- Included Accessories
- Main unit. power adapter, mounting brackets, manual
- Warranty
- 3 år
Pakkeinformasjon
- Pakkestørrelse
- 280 x 170 x 90 mm
- Pakkevekt
- 1,20 kg
