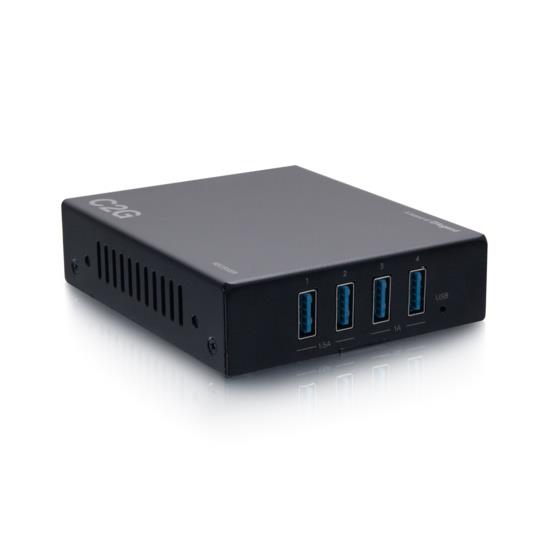

C2G’s Superbooster 4-Port USB over Cat6a Extender Kit – USB 3.2 Gen 1 (5Gbps) was designed to extend data from USB 3.2, 2.0 and 1.1 devices simultaneously up to 328 feet (100m) over a single Cat6a F/FTP cable, making it a perfect solution for USB 3.2 conferencing cameras, interactive white boards, security and monitoring, remote storage, and/or any other USB 3, 2 and 1 device.

No software drivers are required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable, and connect the Receiver to as many as four USB devices.

This Superbooster 4-Port Extender Kit provides the ability to connect USB 3.2 Gen 1 (5Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection.

Tested and Proven
This C2G Superbooster USB Extender has undergone rigorous compatibility testing with industry-leading video conferencing cameras, as well as solid state drives, docks, keyboards, mice and flash drives – ensuring total reliability and deployment confidence, plus saving valuable time for AV integrators as well.



General

Extender type
Transmitter & reciever kit
Technology
TP/CAT Cat6a
Range (max)
100 m

Features

USB standard
1.1, 2.0, 3.2 Gen 1
Dataoverføringshastighet
5 Gbit/s
USB power delivery
5V, 1,5A (7,5W)
USB/Data connection from
USB-B x1
USB/Data connection to
USB-A x4

Energy

Power Supply
DC 24V/ 2A with Bi-directional 24V PoC

Measurements and weight

Width
100 mm
Dypde
85 mm
Høyde
25,5 mm

Additional information

Applikasjon
Freestanding/Shelf
Warranty
5 år

Pakkeinformasjon

Pakkestørrelse
255 x 149 x 81 mm
Pakkevekt
1,05 kg
