Description

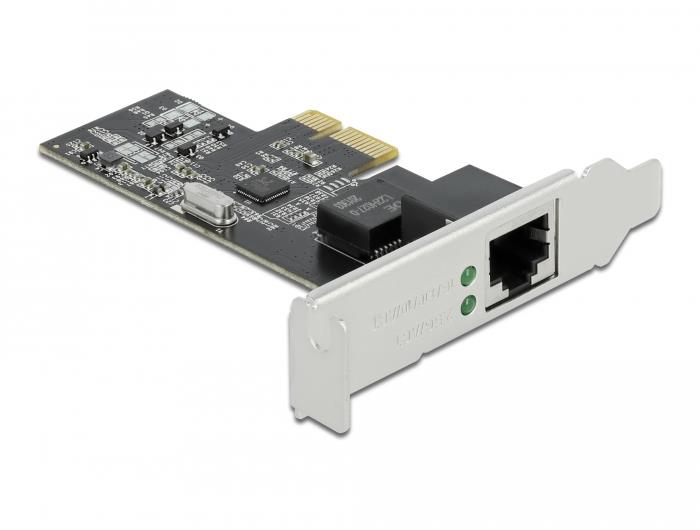

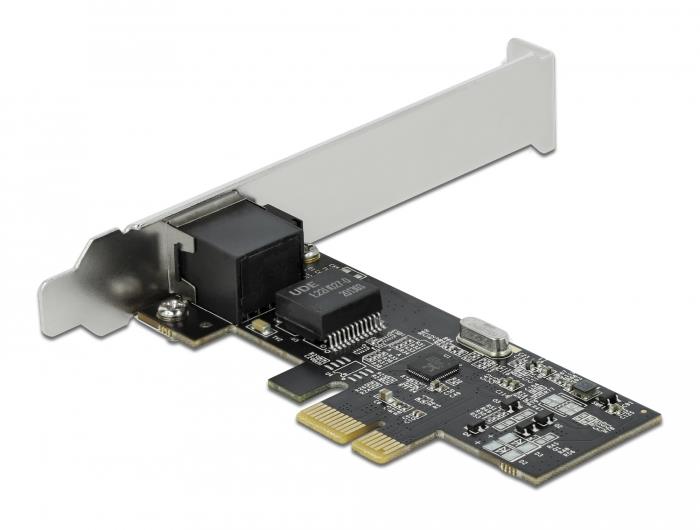

The PCI Express card by Delock offers one network port with a data transfer rate up to 2500 Mbps.

**NBASE-T for higher speed
**Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

Specification
Connectors:

  • external: 1 x 2.5 Gigabit LAN RJ45 jack
  • internal: 1 x PCI Express x1, V2.1
  • Chipset: Realtek RTL8125B
  • Data transfer rate:
  • Ethernet up to 10 Mbps (Half/Full Duplex)
  • Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  • Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
  • NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
  • PCI Express x1 up to 2.5 Gbps
  • Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
  • Supports Wake On LAN (WOL)
  • Supports IEEE 802.1P layer 2 priority encoding
  • Supports IEEE 802.3x full duplex flow control
  • Supports IEEE 802.1Q Virtual LAN (VLAN)
  • Supports 9k Jumbo Frames
  • LED indicator for link and activity

System requirements
Windows 8.1/8.1-64/10/10-64
PC with one free PCI Express slot

PCI Express card
Low profile bracket
Driver CD
User manual

Package
Retail Box



Pakkeinformasjon

Pakkestørrelse
209 x 152 x 37 mm
Pakkevekt
159 g
