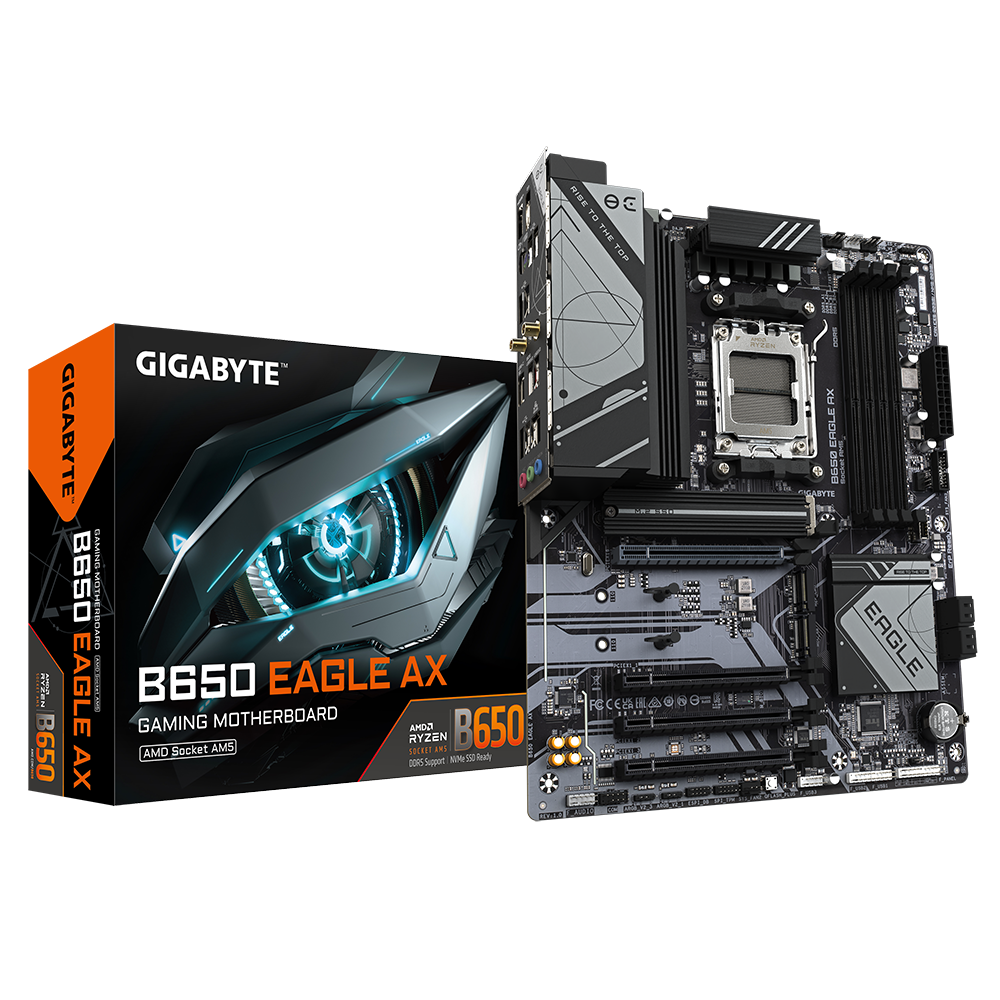

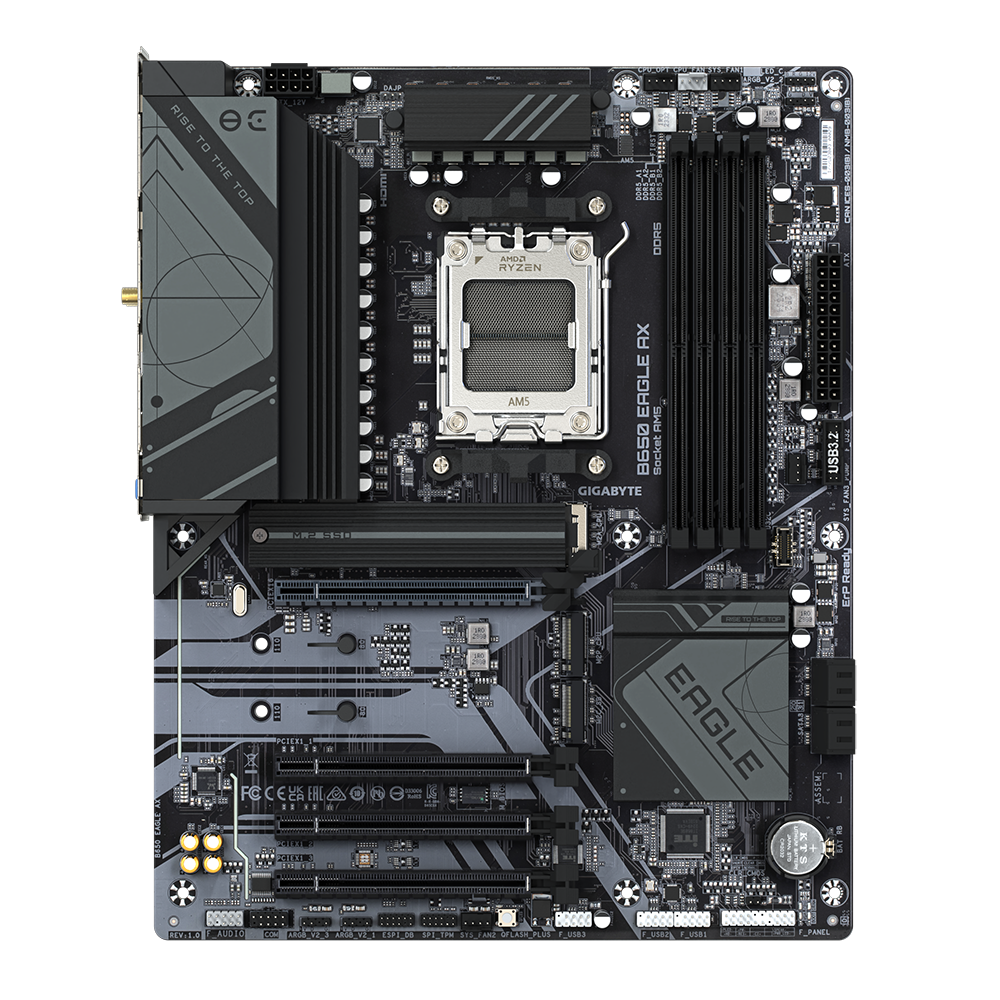

B650 EAGLE AX
AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：12+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：1PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：Wi-Fi 6E 802.11ax & GbE LAN
Extended Connectivity：DP, HDMI, Rear USB® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
General
- Processorsocket
- AMD AM5
- Chipset
- B650
- Formfaktor
- ATX
Memory
- Memory Type
- DDR5
- Kanaler støttet
- Dual Channel
- Memory frequency (base)
- 7 600 MHz
- Memory frequency (OC)
- 4 400 MHz
- Memory slots
- 4 pcs.
- Max Memory Supported
- 192 GB
Expansion Slots
- PCIe x16
- 1 pcs.
- PCIe x1
- 2 pcs.
Storage Devices
- M.2 slots
- 3 pcs.
- SATA ports
- 4 pcs.
Communications
- WiFi
- Ja
- WiFi Standard
- Realtek® Wi-Fi 6E RTL8852CE
- Bluetooth
- Ja
- Bluetooth standard
- 5,3
Internal I/O Connectors
- TPM
- Ja
Rear Panel Ports
- USB type-A
- Ja
- USB type-C
- Ja
- HDMI
- Ja
- DisplayPort
- Ja
Størrelse & Vekt
- Width
- 305 mm
- Lengde
- 244 mm
Pakkeinformasjon
- Pakkestørrelse
- 345 x 274 x 86 mm
- Pakkevekt
- 1,73 kg
Pakkeinformasjon (8 stk)
- Pakkestørrelse
- 575 x 365 x 375 mm
- Pakkevekt
- 14,00 kg
