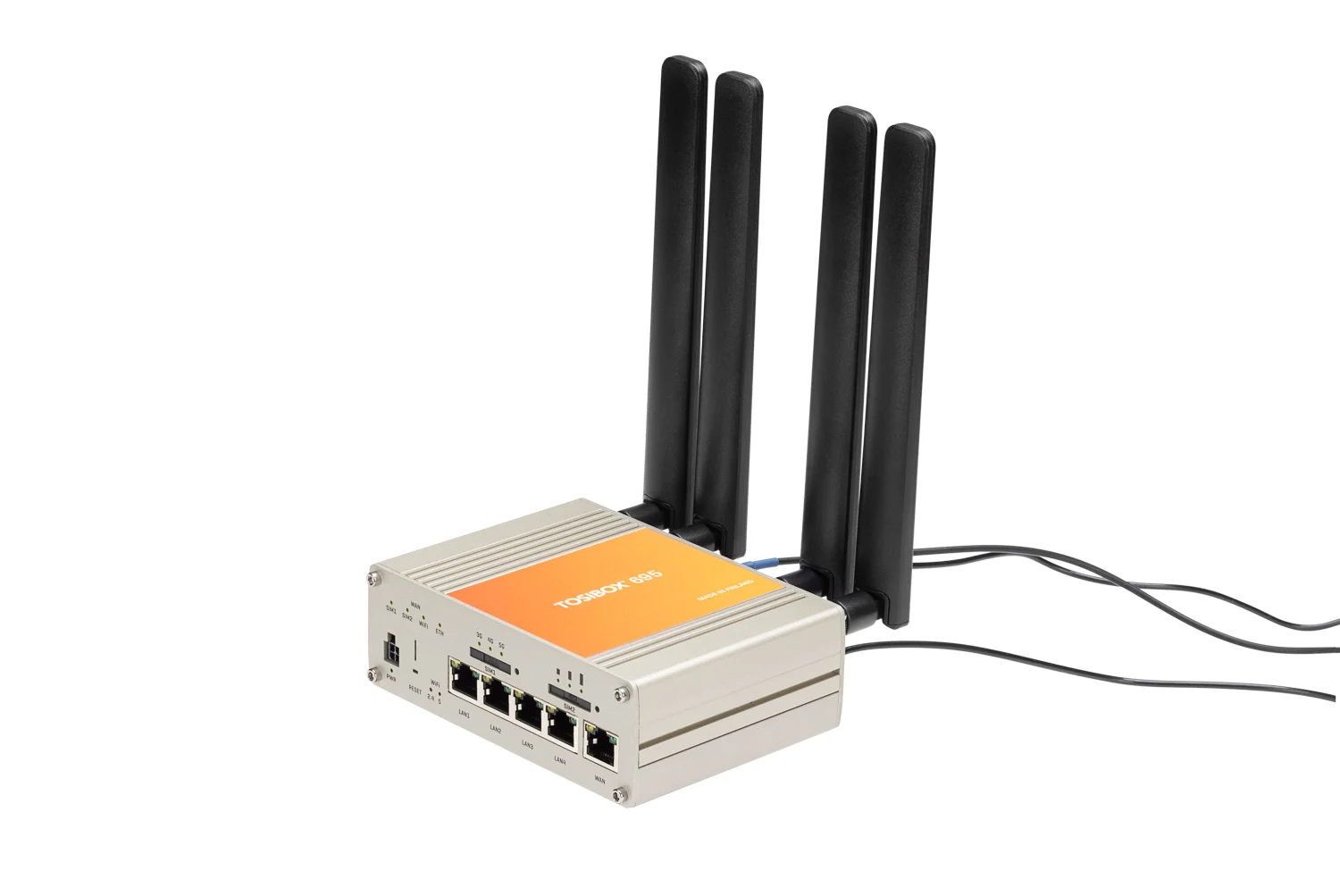

Unleash the power of 5G cellular connectivity and LTE fallback with the TOSIBOX® 695 - a game-changer for networking professionals! Crafted with precision and engineered for toughness, the TOSIBOX® 695 boasts a robust metal alloy casing that's complemented by an extensive temperature range and an IP30 Ingress Protection Rating. It's built to thrive in challenging environmental conditions.

With all the connectivity interfaces you need, this device is tailor-made for power-hungry applications in the most demanding industrial settings. Count on it for speed and reliability at the core of your solutions.

Our Tosibox 600 series offers versatile connectivity options, seamlessly integrated with state-of-the-art cybersecurity technology from Tosibox. It's the ideal choice for a wide range of applications, ensuring your network stays secure. TOSIBOX® 695 seamlessly integrates with your existing Tosibox network.

KEY FEATURES

  • Massive VPN throughput for data-consuming applications, ensuring secure, lightning-fast connectivity
  • End-to-end encryption between Tosibox devices, users, and servers for utmost data security
  • Integrated WiFi for seamless connectivity or as an access point for wireless devices on-site
  • A built-in 5G/LTE modem with cellular speeds exceeding 3 Gbps, guaranteeing ultra-fast and dependable connections
  • Dual-SIM slots for operator redundancy, enhancing reliability and ensuring uninterrupted connectivity
  • TosiOnline™ automatic reconnection of dropped connections, maintaining a stable and continuous network experience
  • Robust and fanless enclosure designed for industrial environments, with easy DIN rail attachment for versatile installation options
  • Extended IP30 rating for durability and protection against harsh environmental conditions
  • Operating temperature range from -40 °C to +75 °C (-40 °F to +167 °F), ensuring reliable performance in extreme climates and settings

CONNECTIONS

  • 4 pin industrial DC power socket
  • 9-50V DC, reverse polarity protection,
  • voltage surge/transient protection
  • 2 x RP-SMA for WiFi
  • 4 x SMA for 5G/LTE
  • 1 x GNSS
  • DIN rail mounting slot in the back and on both sides
  • Maximum power consumption 18W

Included accessories
• Power supply unit
• AC adapter - Input 100 – 240 V AC, frequency 50/60Hz
0,6A, Output 12.0 V, 1.5 A, max 18 W
• 4 x LTE antennas (swivel, SMA male)
• 2 x WiFi antennas (swivel, RP-SMA male)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• Power plug with contact terminals
• DIN rail mount
• Ethernet cable (1.5 m)



General

Model
TBL695EU
Form factor
Desktop
VPN Tunnels
50 pcs.

WiFi

WiFi
Ja

Ports

WAN
1 pcs.
LAN
4 pcs.
5G
Ja

Størrelse & Vekt

Width
132 mm
Høyde
44,2 mm
Dypde
95,1 mm
Weight
533 g

Pakkeinformasjon

Pakkestørrelse
243 x 159 x 83 mm
Pakkevekt
998 g
