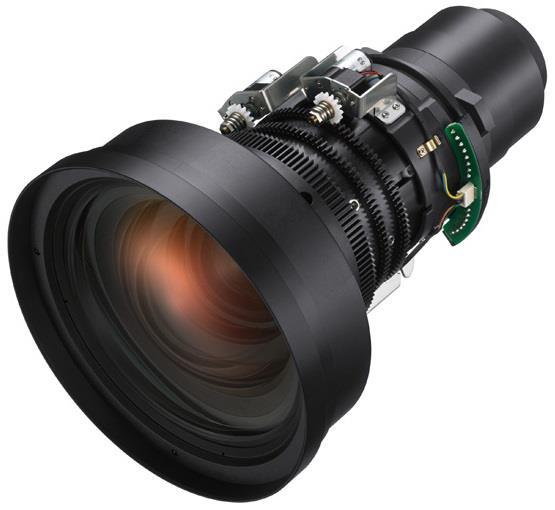

Projection Lens for the VPL-F Series with a throw ratio of 1.0-1.39:1*
Throw ratio 1.0:1 to 1.39:1
Zoom / FocusPowered / Powered
Lens shift:
Vertical: Upward 60% to Downward 5%
Horizontal: Right 29% to Left 29%Aperturef/1.75 to 2.1
Approximate figure for current models
General
- Lens Type
- Short
- Zoom Type
- Motorized Zoom
Optical
- Throw Ratio from
- 1,0
- Throw Ratio to
- 1,39
- Lens shift
- Ja Vertical: Upward 60% to Downward 5%, Horizontal: Right 29% to Left 29%
- Image diagonal min
- 60 "
- Image diagonal max
- 300 "

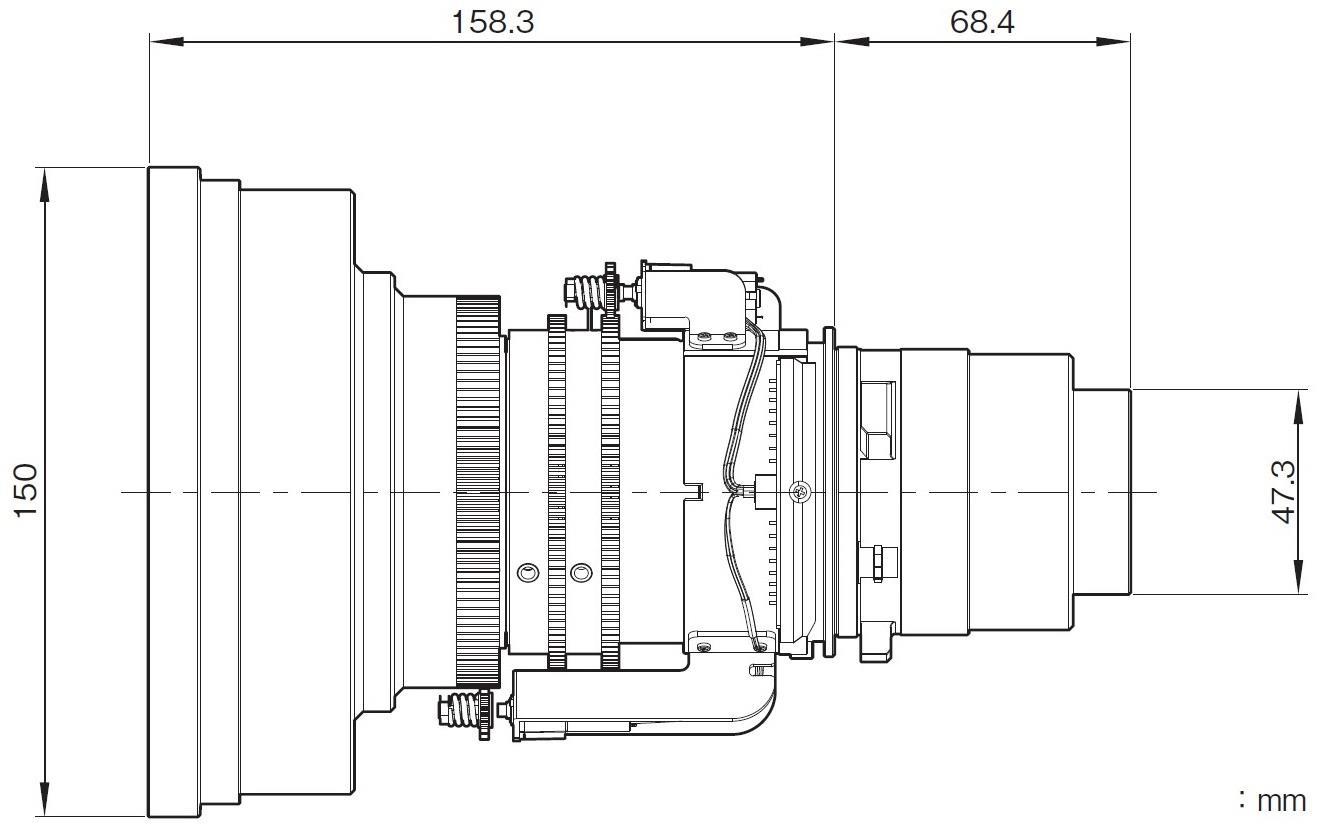

Størrelse & Vekt
- Width
- 150 mm
- Dypde
- 227 mm
- Høyde
- 150 mm
- Net weight
- 2 kg
Pakkeinformasjon
- Pakkestørrelse
- 349 x 249 x 240 mm
- Pakkevekt
- 2,73 kg
