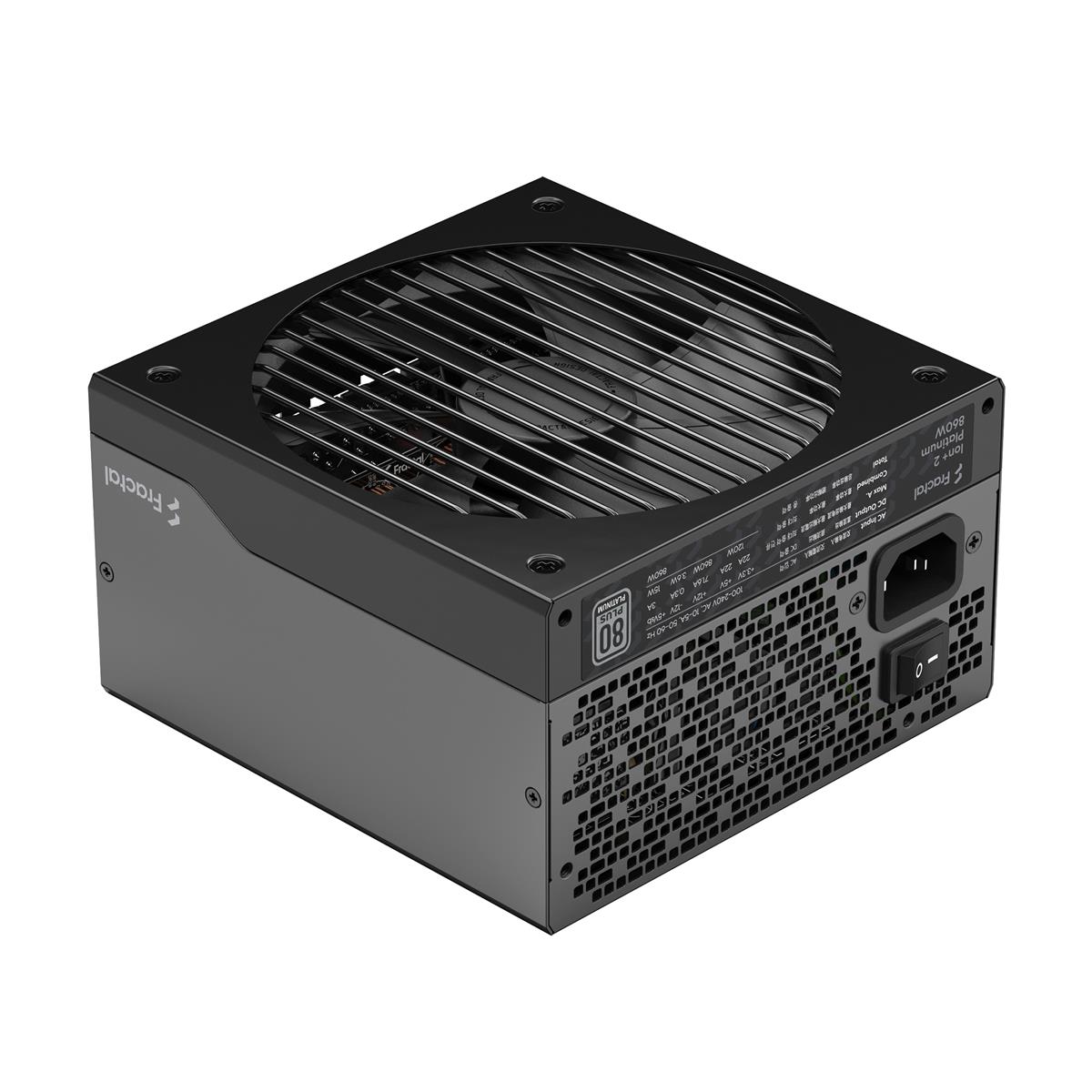

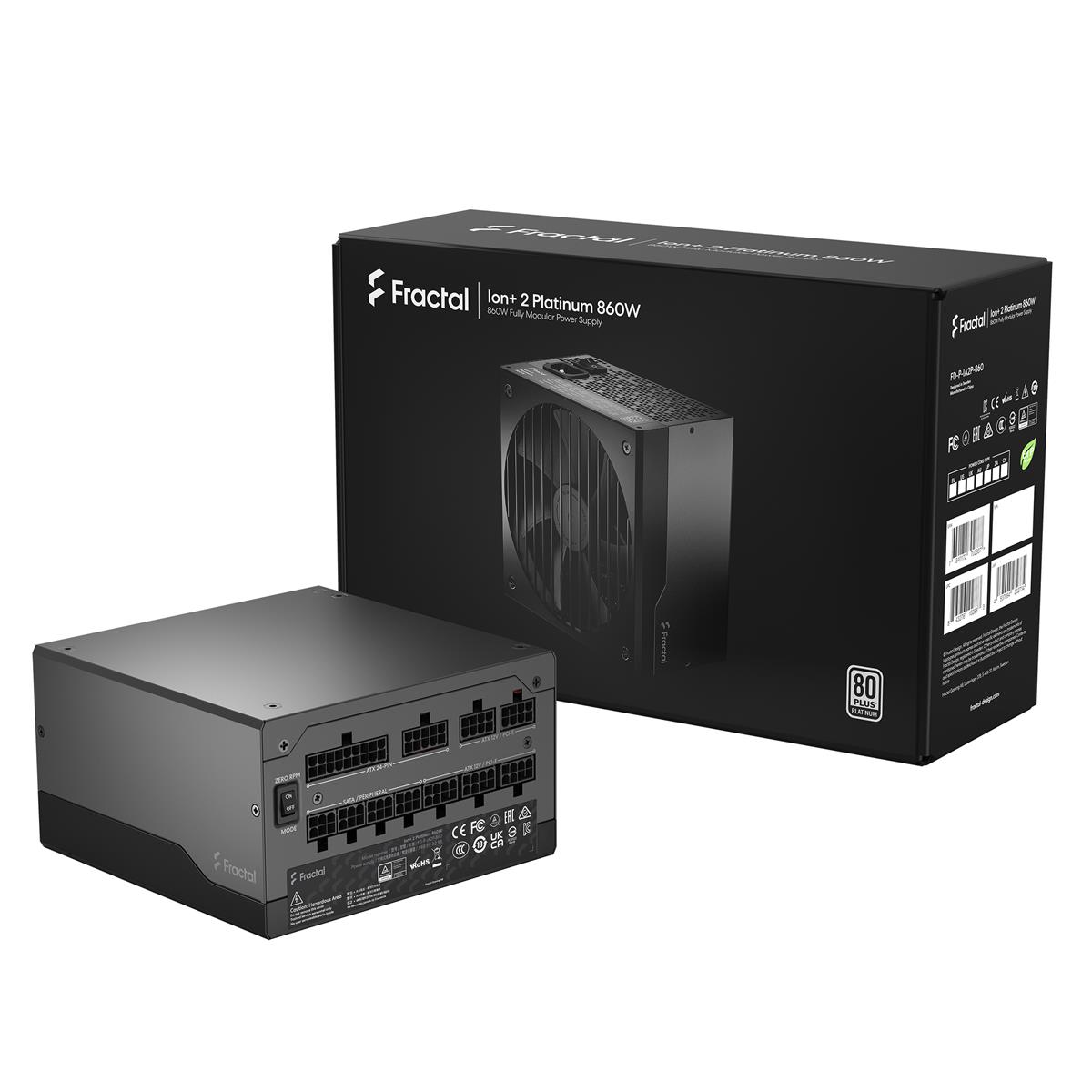

80 PLUS® Platinum certified

  • 80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation
  • Supports the latest ATX 2.52 standard with improved start-up time and transient load response
  • Great electrical output quality with tight voltage regulation and low ripple and noise

Premium capacitors
Premium Japanese 105°C capacitors provide superior reliability and durability

Fully modular design

  • Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management
  • All models include two 8-pin ATX12V/EPS cables, ensuring compatibility with new otherboards
  • Premium storage bags for cables and PSU

Custom-tailored fan
Equipped with a high-performance Dynamic GP-14 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed and a true long-life FDB bearing

Compact advantages

  • Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases
  • Extensive 10-year warranty and a full electrical protection suite provides peace of mind

Semi-passive mode
User selectable semi-passive operation allows for either passive operation in low load situations or continuous low speed fan operation for reduced component stress



General

Formfaktor
ATX
Modular
Ja
Maximum Power
860 W
Energieffektiv
80 PLUS Platinum
Lengde
150 mm

Pakkeinformasjon

Pakkestørrelse
334 x 213 x 114 mm
Pakkevekt
3,17 kg

Pakkeinformasjon (5 stk)

Pakkestørrelse
500 x 300 x 250 mm
Pakkevekt
10,00 kg
