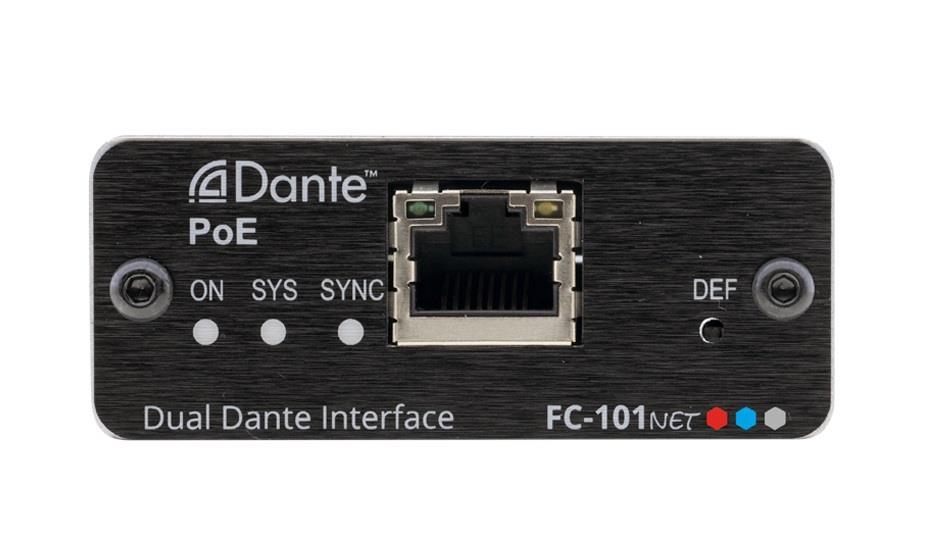

FC−101Net is a compact 2−channel Dante™ decoder with 2 balanced mono audio outputs. It enables connecting non−Dante devices, such as amplifiers and powered speakers, to a Dante network and enables volume control. FC−101Net is powered over Ethernet from any standard PoE providing network switch.

Key Features:
• Dante Network Interface.
• PoE Acceptor.
• Interoperability — Supports AES67 and Dante allowing high–performance interoperability between IP–based audio networking systems.
• Interoperability — Supports AES67 and Dante allowing high–performance interoperability between IP–based audio networking systems.
• Input — 2 Dante channels on an RJ–45 connector.

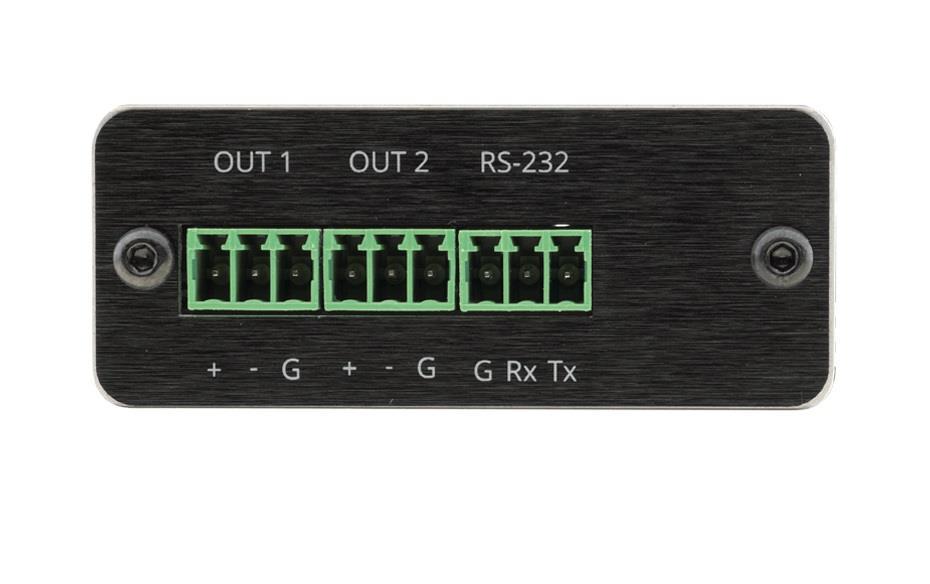

• Outputs — 2 balanced mono audio on a 3–pin terminal blocks.
• Output Volume Control.
• Versatile Control — Via the Dante IP control matrix and Kramer Protocol 3000 via RS–232 connection.
• Professional, Studio Grade Signal Conversion Technology — Includes the latest generation 32–bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.

Applications:
• Classrooms
• Retail
• Small to mid-size meeting rooms
• Boardrooms



Dimensions and weight

Width
62.2 mm
Depth
51.8 mm
Height
24.4 mm
Net weight
0.1 kg

Additional information

Included Accessories
Bracket set, double–sided adhesive dual lock tape
Warranty
7 years

Packaging info

Packaging size
157 x 120 x 87 mm
Packaging weight
247 g
