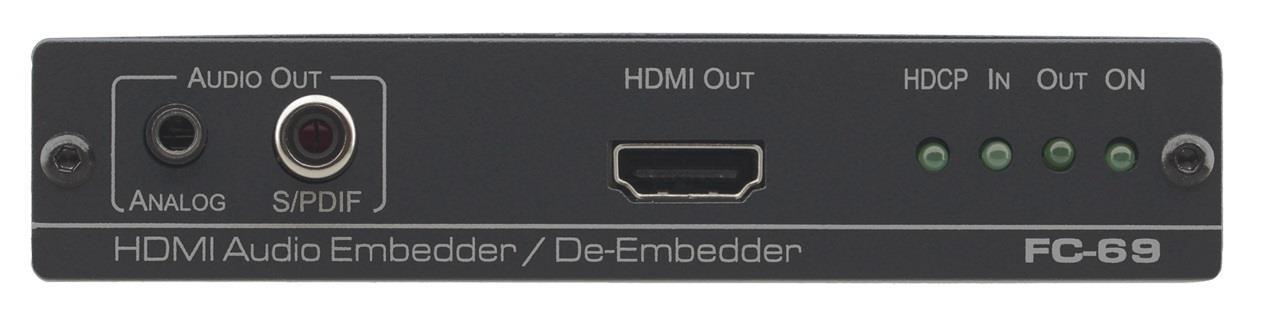

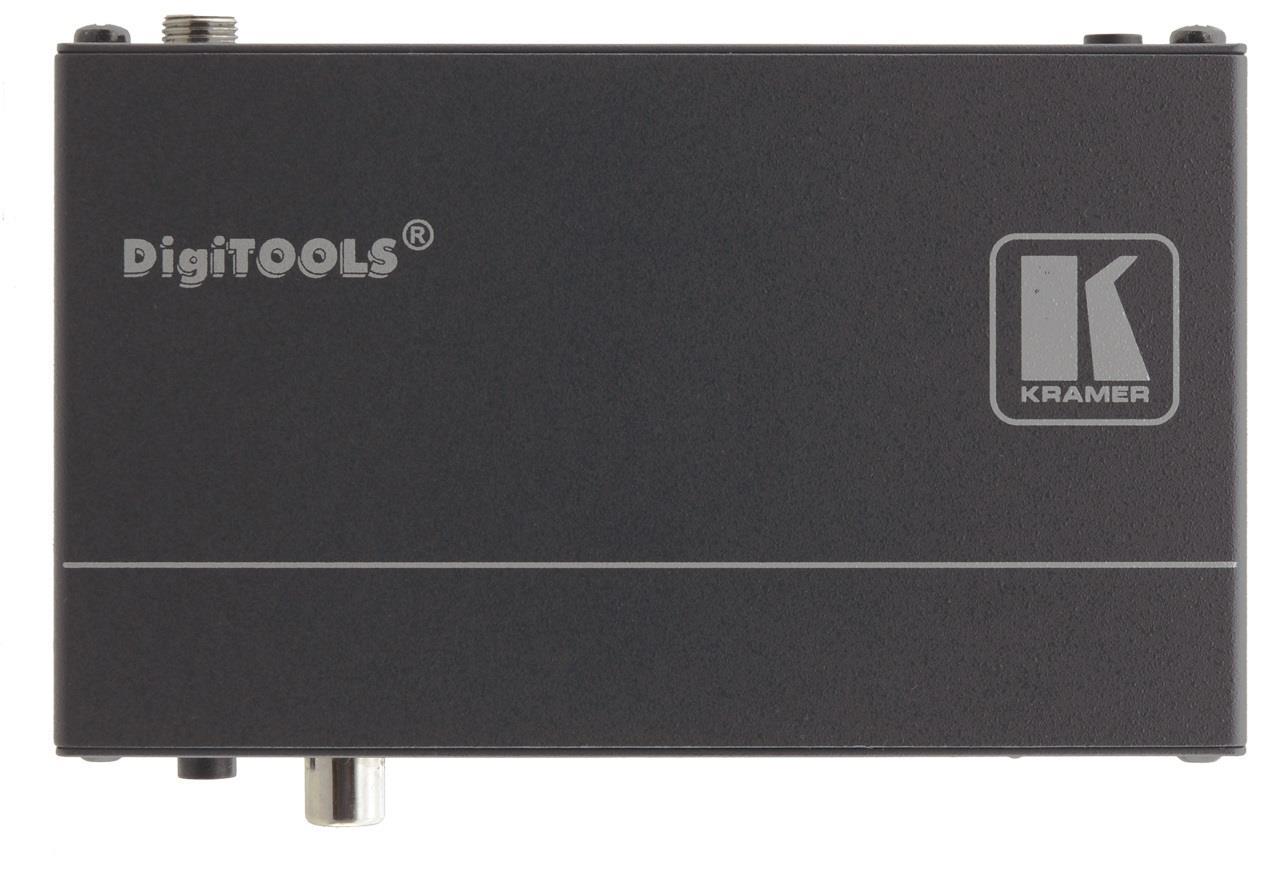

FC−69 is a high−performance 4K@60Hz (4:2:0), 4Kx2K HDMI audio embedder and de−embedder. The unit can embed analog audio to the HDMI output or de−embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.

  • Max. Resolution — 4K@60Hz (4:2:0), 4Kx2K.
  • Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI Support — ARC, 7.1 PCM, deep color.
  • Audio Embedding — Even without an HDMI source.
  • Audio de–Embedding — To unbalanced analog and S/PDIF, selectable from input or ARC.
  • Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
  • Sleep Mode — 5V on the output, following the input, allows the display to turn off when no video is being sent.
  • Preconfigured Control Options — DIP–switches control locking/modifying EDID, HDCP, embedding/de–embedding and sleep mode functionality.
  • PDF datablad Skriv ut denna sida

APPLICATIONS

  • Home theater, presentation and multimedia applications
  • Rental and staging
  • Education and corporate


General

Color
Black

Dimensions and weight

Width
120 mm
Depth
71.5 mm
Height
24.4 mm
Net weight
0.2 kg

Additional information

Included Accessories
Power supply
Warranty
7 years

Packaging info

Packaging size
162 x 124 x 91 mm
Packaging weight
706 g
