RAID on CPU
Hyper M.2 x 16 card V2 is compatible with IntelĀ® Virtual RAID on CPU (VROC) and the AMD Ryzen Threadripper platform for NVMe RAID support. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs.

Design for unthrottled transfer speed

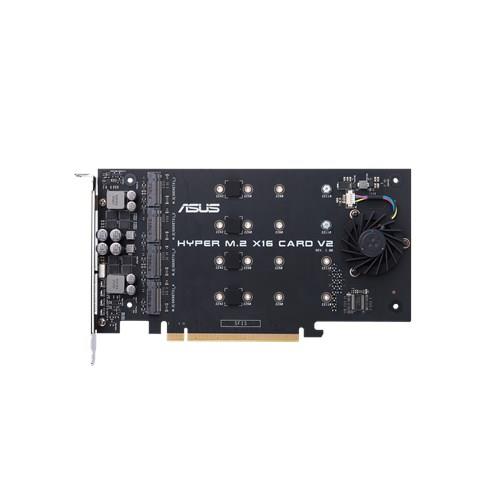

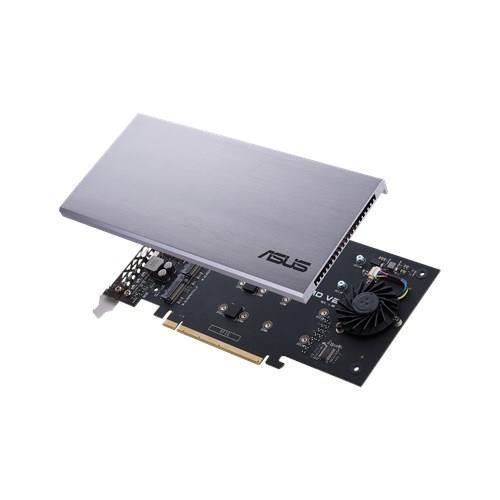

The ASUS Hyper M.2 x16 V2 card provides four M.2 slots to let you expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure drives stay cool for optimum performance.

One card, 4X the bandwidth
Hyper M.2 x16 is designed specifically for Intel Virtual RAID on CPU (VROC) and the AMD Ryzen Threadripper platform for NVMe RAID support and features four M.2 slots, providing up to 128 Gbps of bandwidth per card.

  • New two-phase power solution with up to 14 Watt output supports the latest NVMe drives
  • Large heatsink reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability
  • Support for up to four PCIe 3.0 M.2 drives with transfer bandwidth up to 128Gbps
  • Intel VROC technology and AMD Ryzen Threadripper support enables creation of bootable NVMe RAID arrays using CPU PCIe lanes


General

Power Connector
PCIe 3.0

Dimensions and Weight

Width
202 mm
Height
96 mm
Depth
13 mm

Packaging info

Packaging size
246 x 46 x 224 mm
Packaging weight
662 g

Packaging info (10 pcs)

Packaging size
250 x 300 x 250 mm
Packaging weight
7.00 kg
